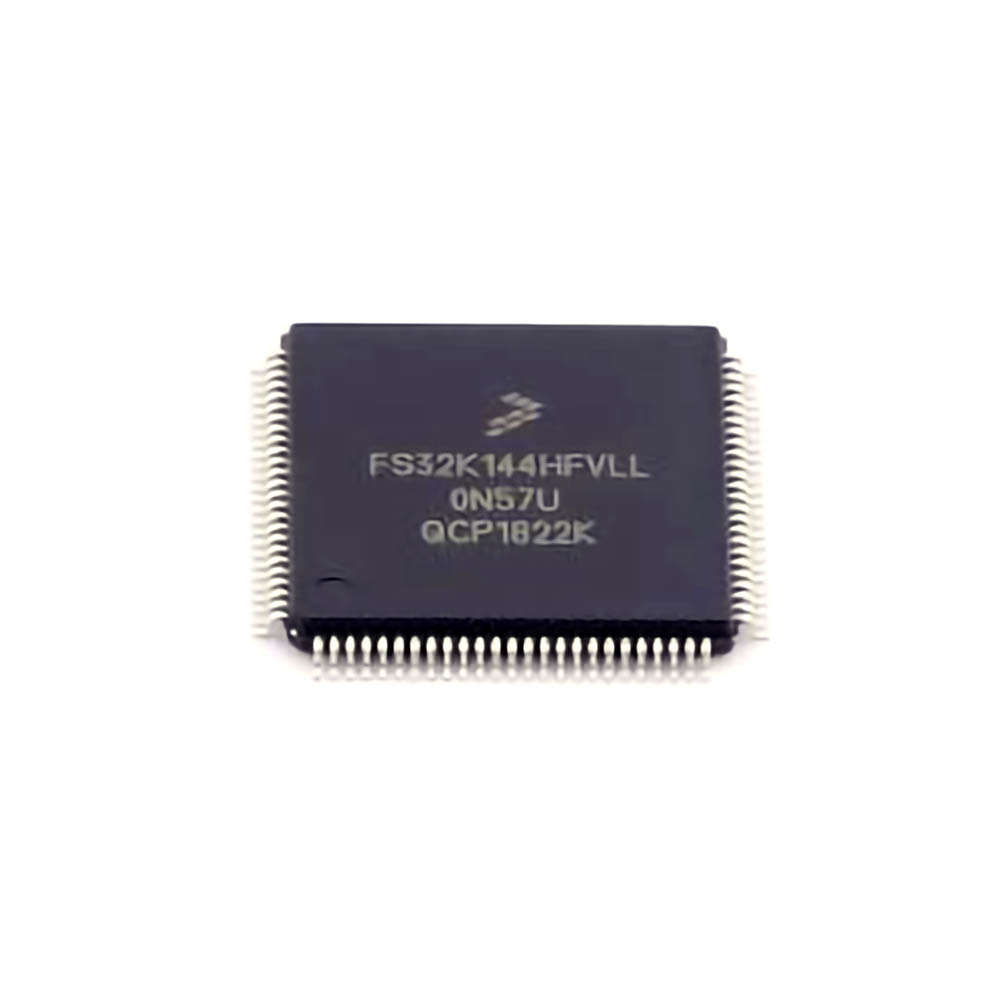

Understanding the FS32K144HFT0VLL Microcontroller and Common Troubleshooting Approaches
The FS32K144HFT0VLL is a member of NXP’s S32K family of microcontrollers, based on the ARM Cortex-M4 core. This MCU is widely used in automotive and industrial applications due to its robust performance, low Power consumption, and advanced features. However, as with any complex system, developers and engineers may encounter issues during the development and deployment phases. Proper troubleshooting is key to ensuring optimal operation.
1. Understanding the FS32K144HFT0VLL's Key Features
Before diving into troubleshooting, it’s essential to have a clear understanding of the key features of the FS32K144HFT0VLL. The microcontroller is equipped with:
ARM Cortex-M4 core: A high-performance core designed for embedded systems, featuring 32-bit processing.
Speed up to 144 MHz: Enables high-speed processing for demanding tasks.
Integrated Flash Memory : Offers up to 2MB of flash memory for storing program code.
RAM: Equipped with 256KB of RAM to handle real-time processing needs.
Peripheral Modules : Includes various peripherals such as GPIOs, SPI, UART, CAN, ADC, and more, making it suitable for a wide range of applications.
Safety and Security: Incorporates hardware-based security features like cryptographic accelerators and memory protection units, ideal for automotive and industrial systems.
These features make it a powerful MCU for embedded systems but also introduce various challenges during development, which can lead to performance issues or errors.
2. Common Troubleshooting Scenarios for FS32K144HFT0VLL
Troubleshooting issues with the FS32K144HFT0VLL typically falls into several categories, including hardware failures, software bugs, peripheral malfunctions, or power-related problems. Below are some of the most common troubleshooting areas:
a) Power Supply Issues
One of the first things to check when a system isn’t booting or is exhibiting strange behavior is the power supply. Power-related issues are frequently the cause of microcontroller malfunctions. The FS32K144HFT0VLL requires a stable voltage supply for proper operation. Variations in voltage or inadequate decoupling can lead to:
Reset issues: The MCU may fail to reset or enter an unintended mode due to power fluctuations.
Clock instability: The internal clock may not function correctly if the power supply is not stable, causing timing issues or system crashes.
Erratic behavior: Peripheral module s may malfunction or behave unpredictably if the power supply is not clean.
Troubleshooting Power Supply Issues:
Check voltage levels: Ensure that the input voltage meets the required specifications.
Use decoupling capacitor s: Place capacitors near the power pins of the MCU to filter out noise and stabilize the voltage.
Verify the power rail: Use an oscilloscope to check for any fluctuations in the power rail that may impact performance.
Inspect for shorts: A short circuit on the board may pull excessive current, causing voltage drops.
b) Clock and Reset Problems
The FS32K144HFT0VLL relies heavily on its clock system, including external and internal oscillators. If the clock configuration is incorrect, the system may fail to start, or peripherals may behave erratically.
Troubleshooting Clock Issues:
Verify the clock source: Ensure that the external crystal oscillator (if used) is correctly placed and has the correct specifications.
Check the clock configuration registers: Review the MCU’s clock configuration settings to make sure the system is operating on the expected frequency.
Reset behavior: Check that the reset pins and circuitry are working correctly. If the reset signal is not functioning as expected, the MCU may not initialize properly.
Oscilloscope analysis: Use an oscilloscope to inspect the clock signals to ensure they are stable and operating at the expected frequency.
c) Debugging Software and Firmware Issues
Sometimes, the problem isn’t related to hardware but to the software running on the microcontroller. These issues can arise from improper initialization, incorrect register configurations, or buggy application code.
Common Software Issues:
Incorrect peripheral initialization: If peripherals like UART, ADC, or SPI are not configured correctly, they may not function properly.
Interrupt conflicts: Interrupt handling routines could be misconfigured, leading to unexpected behavior or failure to process interrupts.
Memory management: Issues like stack overflow, heap corruption, or improper memory addressing can lead to crashes or unexpected results.
Solutions for Software Issues:
Check initialization routines: Review the initialization code for each peripheral to ensure all registers are configured correctly.
Use a debugger: Leverage a hardware debugger to step through the code and identify where things are going wrong.
Check memory usage: Use tools to monitor memory usage, ensuring there’s enough available RAM and that there are no overflows or memory leaks.
Ensure correct interrupt priority: Review interrupt priority settings and interrupt service routines to ensure that high-priority interrupts are not being preempted by lower-priority ones.
d) Peripheral Malfunctions
The FS32K144HFT0VLL includes a rich set of peripherals such as SPI, UART, ADC, and timers. Issues with peripherals can be particularly tricky to diagnose, as they might involve hardware failures or software misconfigurations.
Common Peripheral Issues:
UART communication problems: If data is not being transmitted or received correctly, the issue may be related to baud rates, frame format, or hardware issues like poor wiring.
SPI interface errors: Problems with the SPI communication could result from incorrect clock polarity, phase settings, or faulty wiring.
ADC inaccuracies: The analog-to-digital converter might produce incorrect readings due to improper voltage references or noise on the signal line.
Troubleshooting Peripheral Problems:
Double-check configurations: Verify that peripheral configurations like baud rate for UART or clock polarity for SPI are set according to the hardware specifications.
Use diagnostic tools: Utilize the built-in diagnostic features of the FS32K144HFT0VLL, such as self-test features or peripheral status registers, to check the health of peripherals.
Check wiring and connections: Loose or faulty connections can lead to unreliable communication with external devices or peripherals.
e) System Freeze or Lock-up
A system freeze or lock-up, where the MCU stops responding to interrupts or halts execution entirely, can be caused by a variety of factors such as a watchdog timer timeout, incorrect interrupt handling, or software bugs.
Troubleshooting System Freeze:
Watchdog timer configuration: If a watchdog timer is enabled but not cleared properly in the software, it can trigger a system reset.
Examine interrupt handlers: Ensure interrupt handlers do not lock the system by waiting indefinitely for a condition that never occurs.
Check for infinite loops: Review the main application code to ensure there are no infinite loops or deadlock conditions.
3. Tools and Techniques for Effective Troubleshooting
Effective troubleshooting often requires the use of various tools and techniques to pinpoint the source of the issue. Here are some valuable tools:
In-circuit debugger: A debugger such as J-Link or ULINK can be invaluable for stepping through code and inspecting variables at runtime.
Oscilloscope: An oscilloscope is a critical tool for analyzing power supply stability, clock signals, and peripheral communication lines.
Logic analyzer: A logic analyzer can help trace the flow of digital signals in communication protocols like SPI, UART, or I2C.
Serial output: If a debugger is not available, you can often use a serial interface to output diagnostic messages to track the program’s execution.
Advanced Solutions and Best Practices for FS32K144HFT0VLL Troubleshooting
