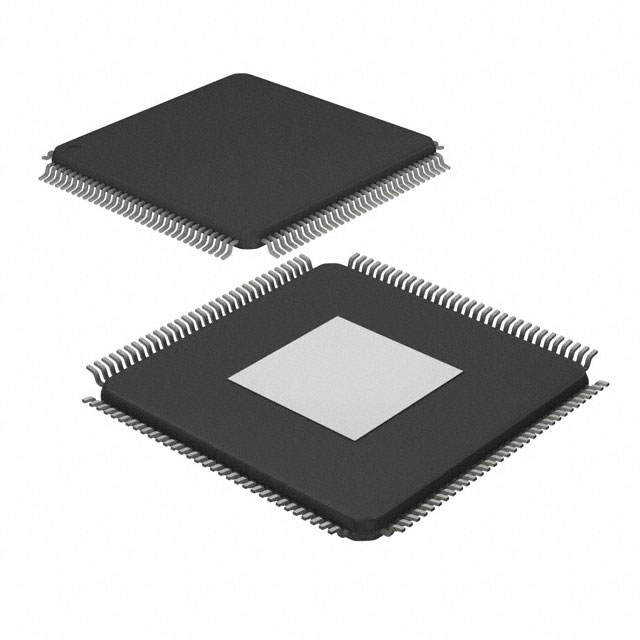

Identifying and Resolving Common Issues with the KSZ9477STXI Ethernet Switch
The KSZ9477STXI, a popular Ethernet switch, offers a wide array of features for networking professionals and developers. From its support for Gigabit Ethernet to its robust Power -saving features, the KSZ9477STXI is designed to facilitate high-performance networking for applications in industrial, automotive, and commercial settings. However, like any advanced device, it is not immune to operational issues.
In this section, we will walk you through some of the most common problems that can arise with the KSZ9477STXI and provide troubleshooting strategies to get your system back up and running smoothly.
1. No Network Connectivity: Why It Happens and How to Fix It
One of the most common issues that users face with the KSZ9477STXI is a complete loss of network connectivity. This issue can be caused by several factors, including improper cabling, configuration errors, or hardware failures. Here are a few steps to troubleshoot the problem:
Check the Physical Layer:
Ensure that all Ethernet cables are properly connected to both the device and the switch ports. A loose or faulty cable can easily disrupt network communication. Try using a different cable to rule out the possibility of a physical defect.
Verify Power Supply:
The KSZ9477STXI requires a stable power source to function correctly. Make sure that the power supply is connected and functioning as expected. If the switch has power but still shows no connectivity, a deeper investigation is needed into the configuration and firmware.
Port Status Indicators:
The LED indicators on the switch can provide valuable information. If the link status LED s are off or blinking erratically, it could indicate a physical layer issue, such as a bad cable or port malfunction. In such cases, try connecting the device to different ports on the switch to identify potential faulty ports.
Check for Configuration Errors:
Incorrect VLAN configurations, mismatched link speeds, or duplex mismatches can prevent the network from functioning correctly. Access the switch’s configuration interface and ensure that all settings are configured appropriately. Pay special attention to VLAN settings and the link speed (e.g., Auto-negotiation vs. fixed speed settings).
2. Slow Network Performance or Latency Issues
Another common issue with the KSZ9477STXI is slow network performance, which may manifest as high latency or reduced data throughput. This problem can significantly impact applications relying on fast data transfer, such as video streaming or VoIP. To resolve performance issues, follow these troubleshooting steps:
Inspect Network Traffic:
High network traffic or broadcast storms can overload the switch and slow down the performance. Use network monitoring tools to analyze the traffic patterns and identify any abnormalities, such as excessive broadcast packets or network loops.
Check for Bandwidth Saturation:
Ensure that the network is not saturated with traffic. If multiple high-bandwidth applications are running simultaneously, the available bandwidth may be insufficient for all devices. You can consider segmenting the network into multiple VLANs or upgrading the switch’s uplink capacity.
Analyze Latency and Jitter:
In some cases, latency and jitter can cause significant disruptions to time-sensitive applications. Use tools like ping and traceroute to check for excessive latency between devices and identify where the delay is occurring. Sometimes, improper switch configuration or excessive load on the switch can be the cause of these issues.
Check for QoS (Quality of Service) Configuration:
If your network has specific requirements for prioritizing traffic (e.g., VoIP or video conferencing), make sure that the QoS settings are correctly applied. QoS ensures that high-priority traffic is given preferential treatment, which can help minimize latency for critical applications.
Update Firmware:
Performance issues may sometimes be caused by bugs or inefficiencies in the firmware. Make sure the switch is running the latest firmware version. Check the manufacturer’s website for any updates and apply them as necessary.
3. VLAN Configuration and Segmentation Issues
The KSZ9477STXI supports advanced VLAN configurations, but improper VLAN setup can lead to significant issues with network segmentation. VLAN misconfigurations can cause devices to be unable to communicate with each other or result in network traffic being incorrectly routed. Here’s how to troubleshoot VLAN-related issues:
Verify VLAN Assignments:
Ensure that all devices connected to the switch are assigned to the correct VLANs. Devices on different VLANs may not be able to communicate with each other without proper routing. Check the port VLAN assignments in the switch configuration and ensure that devices are connected to the appropriate ports.
Check Inter-VLAN Routing:
If you have multiple VLANs, ensure that there is a router or Layer 3 device responsible for inter-VLAN routing. Without this, devices on different VLANs won’t be able to communicate. You can configure routing protocols like OSPF or static routes to facilitate inter-VLAN communication.
Check for VLAN Tagging Issues:
VLAN tagging allows the switch to identify which VLAN a frame belongs to. If there are mismatches in VLAN tagging between devices, communication may fail. Ensure that the correct tagging protocols (e.g., IEEE 802.1Q) are being used, and check the trunk links for proper configuration.
Test VLAN Isolation:
In some cases, you may need to test whether VLAN isolation is functioning as intended. For example, if a VLAN is not isolated from the rest of the network, devices from other VLANs may be able to communicate with each other. Test the isolation by pinging devices within the same VLAN and from other VLANs.
4. Power Over Ethernet (PoE) Issues
The KSZ9477STXI supports Power over Ethernet (PoE), which allows the switch to supply power to connected devices like IP cameras, wireless access points, or VoIP phones. However, PoE issues can arise, preventing devices from receiving the necessary power. Here’s how to troubleshoot:
Verify PoE Availability:
First, ensure that the switch is configured to deliver PoE on the required ports. In the switch’s configuration interface, check that PoE is enabled on the relevant ports. If the PoE feature is disabled, the connected device won’t receive power.
Check PoE Budget:
The total available power for PoE is often limited by the switch’s power budget. If too many PoE devices are connected, the power budget may be exceeded, causing devices to lose power. Verify the total PoE budget of the switch and check if the total power demand from connected devices exceeds the available budget.
Test PoE Device:
If a specific device is not receiving power, try connecting it to a different PoE-enabled port on the switch. If the device still doesn't power up, the issue may be with the device itself. Try using another PoE device to rule out the possibility of a defective unit.
Advanced Troubleshooting and Solutions for the KSZ9477STXI
