Common Issues with LM22676MRX-ADJ and How to Identify Them

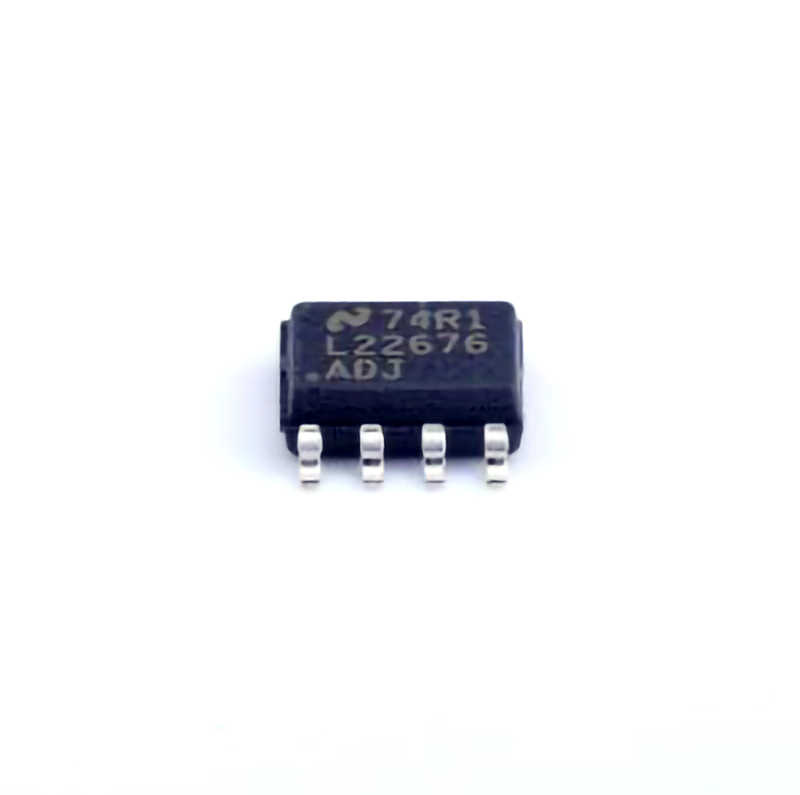

The LM22676MRX-ADJ is a high-pe RF ormance, adjustable Power regulator commonly used in industrial, automotive, and consumer electronics applications. While it offers flexibility and efficiency, like any electronic component, it can encounter issues that compromise its performance. Understanding the common problems and their solutions is key to maintaining a reliable and efficient system.
1. Output Voltage Instability
One of the most common issues users face when working with the LM22676MRX-ADJ is instability in the output voltage. The LM22676MRX-ADJ is designed to provide a stable output voltage across varying loads, but if the output becomes erratic, several factors could be at play.
Potential Causes:
Insufficient Input capacitor : The LM22676MRX-ADJ requires a stable input voltage to operate efficiently. If the input capacitor (often a bulk capacitor) is not sized properly or is faulty, it can cause voltage fluctuations, leading to unstable output.
Inadequate Grounding: Poor grounding can introduce noise and instability. It's crucial to ensure that the ground traces are short and thick to minimize Resistance and inductance.
Load Transients: If the load is fluctuating significantly or is highly inductive, this can result in voltage spikes or drops.
Solution:
Check Capacitor Sizes: Ensure that the input and output Capacitors are properly rated according to the datasheet. Adding a larger capacitor at the input can help stabilize voltage.
Optimize Grounding: Use thick, short ground traces and, if possible, connect the ground to a single point to minimize voltage drops.
Use Additional Filtering: In cases of noisy loads, adding a high-frequency filter can reduce transient noise and prevent output fluctuations.
2. Excessive Heat Generation
Excessive heat buildup in power regulators can lead to thermal shutdown or permanent damage to the LM22676MRX-ADJ. Overheating can be particularly problematic in compact designs or when the regulator is required to handle high power loads.
Potential Causes:
High Power Dissipation: The LM22676MRX-ADJ operates with a certain efficiency, but at high input-output voltage differentials or heavy loads, it may generate significant heat.
Inadequate Heat Sink or PCB Layout: Without sufficient thermal management, the chip will overheat. A poor PCB layout with inadequate copper area for heat dissipation can exacerbate the problem.
Solution:
Use Efficient Heat Sinks: Adding an external heat sink to the LM22676MRX-ADJ or ensuring there is enough thermal copper area on the PCB will help dissipate heat more effectively.
Improve PCB Layout: Make sure that there are wide traces for power delivery, and consider using multiple layers of copper to distribute heat evenly.
Optimize Load Conditions: Reduce the current load where possible or ensure that the input-output voltage difference is minimized to decrease power dissipation.
3. Low Efficiency or High Power Loss
Efficiency is one of the key benefits of the LM22676MRX-ADJ, but several factors can reduce its performance and lead to higher power losses. A reduction in efficiency can lead to increased heating, and ultimately, system failure.
Potential Causes:
Incorrect Component Selection: Using components with unsuitable values can result in less efficient operation. For example, choosing an inappropriate inductor or capacitor can reduce efficiency.
High Input-Output Voltage Differential: The larger the difference between the input and output voltage, the higher the losses in the regulator.
Overloading: If the regulator is subjected to loads greater than its rated capacity, it may struggle to maintain efficiency.
Solution:
Ensure Proper Component Selection: Follow the datasheet guidelines for selecting capacitors, inductors, and resistors. Ensure that they are rated for the operating conditions of your circuit.
Reduce Voltage Differential: Try to reduce the difference between the input and output voltages to minimize energy loss during conversion.
Load Optimization: Ensure that the current demand of your load is within the specifications of the LM22676MRX-ADJ. For higher loads, consider using a more powerful regulator or adding additional parallel regulators.
Advanced Troubleshooting and Solutions for the LM22676MRX-ADJ
While the issues discussed in Part 1 are common and easy to identify, there are more advanced challenges that users may face when working with the LM22676MRX-ADJ. In this section, we explore more complex problems, offering troubleshooting tips and solutions to keep your system running smoothly.
4. Ripple or Noise in the Output
Ripple and noise in the output can interfere with sensitive electronics and degrade overall performance. These issues may be particularly noticeable in precision applications such as RF circuits or high-precision analog systems.
Potential Causes:
Insufficient Output Filtering: The LM22676MRX-ADJ requires proper output capacitors to minimize ripple and noise. If these are not correctly specified or sized, unwanted noise can pass through.
Layout Inductance: Excessive inductance in the PCB layout, particularly in the ground and power paths, can contribute to noise.
Switching Frequency Interference: As a switching regulator, the LM22676MRX-ADJ operates at a specific frequency. If there is coupling between the regulator's switching frequency and the load, this can create ripple.
Solution:
Use Low ESR Capacitors: Low Equivalent Series Resistance (ESR) capacitors at the output can significantly reduce ripple. Consider using ceramic capacitors, as they tend to have very low ESR and better high-frequency performance.
Improve PCB Layout: Minimize the loop area of the input and output paths, and place the ground pin close to the input and output capacitors. This will reduce inductance and noise coupling.
Switching Frequency Filtering: If interference from the switching frequency is an issue, consider using an additional low-pass filter at the output to attenuate high-frequency noise.
5. Regulator Starts But Fails to Maintain Operation
In some cases, the LM22676MRX-ADJ may start up but fail to maintain continuous operation. This can lead to sporadic system behavior, with the regulator working intermittently.
Potential Causes:
Overcurrent Protection: The LM22676MRX-ADJ features internal overcurrent protection. If the load exceeds the current limit, the regulator may shut down or restart.
Undervoltage Lockout: The regulator might fail to maintain operation if the input voltage falls below a certain threshold, triggering an undervoltage lockout.
Faulty Feedback Loop: The feedback resistor network controls the output voltage. If the resistors are miscalculated or faulty, the regulator may not maintain the desired output.
Solution:
Check Current Limits: Ensure that the load is within the current capacity of the LM22676MRX-ADJ. If necessary, use a current-limiting circuit to protect the regulator.
Monitor Input Voltage: Verify that the input voltage is consistently above the minimum required by the LM22676MRX-ADJ. If the input voltage is unstable, use a more stable power source.
Verify Feedback Network: Double-check the feedback resistor values and ensure they are correctly placed according to the datasheet. A faulty feedback loop can prevent the regulator from maintaining a stable output.
6. Long Start-up Time or Failure to Start
If the LM22676MRX-ADJ takes an unusually long time to start, or fails to start entirely, there may be several underlying issues.
Potential Causes:
Faulty Soft-Start Capacitor: The LM22676MRX-ADJ includes a soft-start feature to reduce inrush current during startup. If the soft-start capacitor is damaged or improperly selected, it may cause the regulator to fail to start or delay the start-up time.
Improper Startup Conditions: The regulator may require a specific input voltage range or capacitor selection to function correctly at start-up.
Solution:
Check Soft-Start Capacitor: Ensure the soft-start capacitor is within the recommended range and properly installed. If it's damaged, replace it with a new one.
Verify Startup Parameters: Ensure that the input voltage is within the specified range, and that the input capacitor meets the requirements in the datasheet. If necessary, add an external resistor or capacitor to improve startup behavior.
Conclusion:
The LM22676MRX-ADJ is a highly versatile and efficient power regulator, but like all electronic components, it can encounter issues that affect its performance. By understanding the most common problems—such as output instability, excessive heat, and low efficiency—along with advanced issues like ripple, overcurrent protection, and start-up problems, you can maintain the LM22676MRX-ADJ’s performance at optimal levels. Armed with these troubleshooting tips and solutions, you’ll be well-equipped to handle any challenges that come your way, ensuring that your designs continue to function reliably and efficiently.
