The APM32F030C8T6 microcontroller is a popular choice for a wide range of embedded systems, offering exceptional performance and versatility. However, like any piece of technology, users may encounter a range of issues. This comprehensive troubleshooting guide provides practical solutions to common problems, helping you get the most out of your APM32F030C8T6 microcontroller.
APM32F030C8T6 troubleshooting, microcontroller issues, APM32F030, embedded systems, MCU solutions, APM32F030C8T6 common problems, debugging APM32F030, APM32F030 troubleshooting guide
Understanding Common Problems with APM32F030C8T6

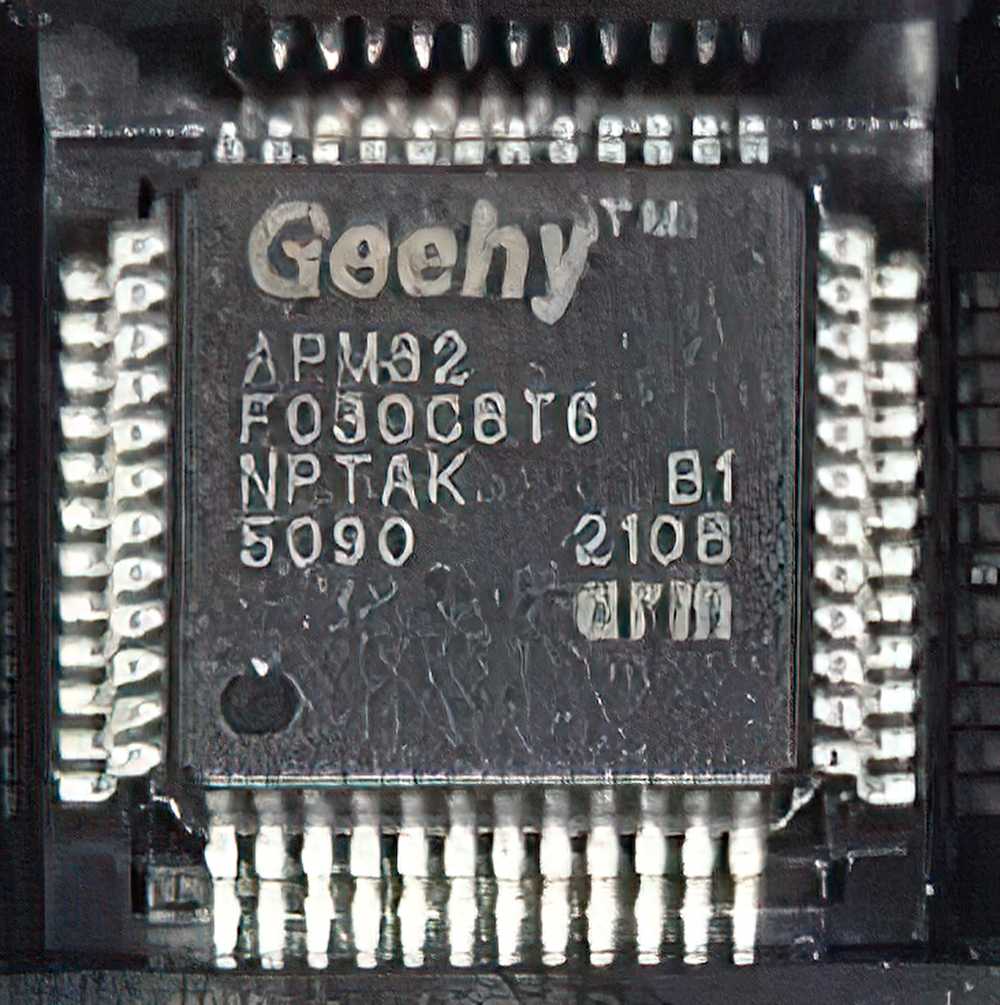

The APM32F030C8T6 is a highly capable microcontroller based on the ARM Cortex-M0 core, featuring 32-bit processing capabilities, 64KB of flash Memory , and 8KB of SRAM. It is widely used in applications ranging from consumer electronics to automotive systems. However, despite its robust features, users may encounter various challenges during development and deployment. This article provides an overview of the most common issues faced by users and the corresponding solutions.
1. Power Supply and Voltage Issues
A primary cause of problems with the APM32F030C8T6 lies in improper power supply configurations. If the microcontroller fails to boot or behaves unpredictably, the first thing to check is the power supply.
Possible Causes:
Insufficient Voltage: The APM32F030C8T6 operates at 3.3V, and providing less voltage can lead to unstable operation or failure to initialize.
Voltage Spikes: Voltage spikes or noise can corrupt the MCU's operation or cause permanent damage.
Incorrect Pin Configuration: Sometimes, the VDD pin or other power-related pins may not be properly connected, leading to failure in startup.
Solutions:
Use a Stable Power Source: Ensure the power supply is capable of delivering 3.3V with sufficient current for the MCU and any connected peripherals. Using a regulated power supply is highly recommended.
Decoupling Capacitors : Place capacitor s (0.1µF and 10µF) near the VDD and GND pins to filter noise and stabilize the supply voltage.
Check Pin Connections: Always verify that VDD and GND pins are correctly connected and that no pins are inadvertently floating or misconnected.
2. Bootloader and Flash Programming Issues
Another common problem involves issues during the flashing or booting process. If the microcontroller does not respond after programming, the issue may lie in the bootloader configuration, flash memory corruption, or improper programming procedures.
Possible Causes:
Bootloader Configuration: The bootloader is responsible for initializing the MCU and loading the firmware. If the configuration is incorrect, the device may fail to boot.
Corrupted Flash Memory: Flash memory corruption can occur if a programming cycle is interrupted or if the microcontroller's memory is accessed incorrectly.
Incorrect Flashing Procedure: Incorrect flashing tools, or failure to reset the MCU properly during the flashing process, can prevent successful firmware installation.
Solutions:
Correct Bootloader Settings: Ensure the bootloader is properly configured in your firmware. If necessary, re-flash the bootloader to restore proper booting.
Verify Flash Integrity: Use an appropriate tool to check the flash memory integrity before and after flashing the firmware. Many IDEs and flash programming tools can perform verification automatically.
Follow Proper Flashing Procedure: Always follow the recommended flashing procedure outlined in the APM32F030C8T6 datasheet. Ensure the MCU is properly reset before and after programming to ensure the firmware is properly loaded.
3. Clock Configuration and Timing Problems
Timing and clock-related issues are common in embedded systems, especially when working with external oscillators or modifying system clock settings.
Possible Causes:
Incorrect Clock Source: The APM32F030C8T6 supports different clock sources (internal and external). Using the wrong clock source or failing to configure the clock system properly can result in timing issues.
PLL Misconfiguration: If the Phase-Locked Loop (PLL) configuration is incorrect, the MCU may not achieve the expected operating frequency.
External Oscillator Failure: If an external crystal oscillator is used and it fails or is miswired, the system clock may not initialize correctly.
Solutions:
Ensure Proper Clock Source Configuration: Always double-check the clock source and PLL configuration settings. Use the system clock configuration tool provided by the development environment to set up your clock sources correctly.
Verify Oscillator Functionality: If using an external oscillator, ensure that it is functioning correctly and properly connected. You can use an oscilloscope to check the oscillator's output.
System Clock Initialization: Ensure that the MCU’s clock initialization routine is correctly executed in your startup code, especially if you're using custom settings.
4. Communication and Peripheral Setup
The APM32F030C8T6 supports a variety of communication protocols, including UART, SPI, and I2C. However, issues in communication between the MCU and peripherals are commonly reported by users.
Possible Causes:
Incorrect Peripheral Initialization: If a peripheral (like UART or I2C) is not properly initialized in the software, it may fail to communicate with the rest of the system.
Wrong Baud Rate/Clock Settings: Mismatched baud rates, clock settings, or pin configurations can result in communication failure.
Electrical Interference: Long wiring or improper grounding can introduce noise into communication lines, leading to data corruption.
Solutions:
Double-Check Peripheral Initialization: Verify that all peripheral initialization routines are correctly implemented, especially when dealing with UART, SPI, or I2C. Pay particular attention to initialization order.
Check Baud Rate and Clock Settings: Ensure that the baud rate, clock frequency, and other communication settings match between the MCU and the peripheral device.
Reduce Electrical Interference: Keep communication lines as short as possible and ensure proper grounding and shielding to minimize electrical noise.
5. Debugging and Software Issues
Software-related issues can often be harder to diagnose, but a few standard debugging techniques can help identify problems efficiently.
Possible Causes:
Stack Overflow or Memory Corruption: If the program exceeds the allocated stack size or accesses invalid memory, the MCU may exhibit strange behavior or crash.
Infinite Loops: Misconfigured interrupt service routines or errors in the code logic can result in the MCU getting stuck in infinite loops.
Incorrect Interrupt Handling: Interrupts are crucial for time-sensitive applications, but misconfigurations can lead to missed or erroneous interrupts.
Solutions:
Enable Stack and Heap Checking: Use the built-in stack overflow detection features of your development environment to catch stack overflows or memory corruption.
Check for Infinite Loops: Use debugging tools to step through your code and ensure that the program is not getting stuck in unexpected infinite loops.
Proper Interrupt Configuration: Double-check interrupt priorities and handlers to ensure that interrupts are being serviced as expected.
Advanced Troubleshooting Solutions and Preventative Measures
While part one covered general troubleshooting steps for common issues, part two dives into advanced solutions and preventative measures. These are designed to enhance your overall development experience and ensure that the APM32F030C8T6 functions reliably in your embedded systems.
6. Temperature and Environmental Factors
Sometimes issues with the APM32F030C8T6 are related not to the hardware or software directly but to environmental factors like temperature.
Possible Causes:
Overheating: If the MCU is operating in a high-temperature environment or lacks proper heat dissipation, it may fail to function properly.
Static Electricity: Electrostatic discharge (ESD) can damage the MCU and cause erratic behavior.
Solutions:
Provide Adequate Cooling: Ensure your system has proper cooling mechanisms, such as heat sinks or ventilation, especially in high-power applications.
Protect from ESD: Use anti-static wrist straps, mats, and packaging to protect the MCU from static damage during handling.
7. External Component Failures
When troubleshooting, it’s easy to overlook the fact that external components can also cause system failures. These could include Sensor s, actuators, or other peripherals connected to the APM32F030C8T6.
Possible Causes:
Faulty External Components: Sensors or other connected devices may fail or behave unpredictably, affecting the performance of the MCU.
Improper Circuit Design: Issues such as poor routing, improper voltage levels, or insufficient current supply can lead to unstable operation.
Solutions:
Test External Components Independently: If you suspect that an external component is causing the issue, test it separately to ensure it's functioning as expected.
Review Circuit Design: Use circuit simulation tools to validate your design before implementation. Ensure that power and signal levels are within the acceptable range for all components.
8. Use of Bootloaders and Firmware Upgrades
When developing with the APM32F030C8T6, you may want to take advantage of bootloaders or upgrade your firmware over time. Improper use or failure to update firmware can lead to system failures.
Possible Causes:
Outdated Bootloader: An outdated or incompatible bootloader can prevent the system from booting or updating the firmware.
Incompatible Firmware Versions: Installing firmware that is not compatible with your hardware version can result in erratic behavior.
Solutions:
Update Bootloader: Ensure that you are using the latest bootloader version compatible with your hardware.
Verify Firmware Compatibility: Before upgrading the firmware, ensure that it is fully compatible with your MCU’s hardware and peripherals.
9. Software Tools and IDE Issues
Sometimes, the issue might not be with the hardware itself, but with the software tools or Integrated Development Environment (IDE) you're using.
Possible Causes:
Corrupted IDE Installation: Sometimes, IDEs or debugging tools can become corrupted or misconfigured.
Incorrect Toolchain Settings: Misconfiguration of the toolchain can lead to improper code generation or debugging failures.
Solutions:
Reinstall or Update IDE: If you encounter unexplained issues during development, consider reinstalling your IDE or updating it to the latest version.
Check Toolchain Configuration: Verify that your toolchain is correctly configured for the APM32F030C8T6, including the correct compiler and linker settings.
Conclusion
The APM32F030C8T6 microcontroller is a powerful and versatile device for embedded applications, but like any piece of hardware, it can encounter various issues during development. By following the troubleshooting steps outlined in this guide, you can resolve common problems quickly and efficiently. Whether you’re dealing with power supply issues, communication problems, or software bugs, the solutions provided here will help you ensure that your APM32F030C8T6-based systems run smoothly and reliably.
