In this article, we delve deep into the application and performance tuning of the PCM1808PWR Audio analog-to-digital converter (ADC) in audio acquisition systems. Focusing on its strengths, best practices for implementation, and performance optimization techniques, we aim to provide engineers with a comprehensive guide to leveraging this versatile component for superior audio quality and system efficiency.
PCM1808PWR, audio acquisition systems, ADC, performance tuning, audio quality, analog-to-digital conversion, low- Power ADC, Texas Instruments, audio signal processing, audio performance optimization
Understanding the PCM1808PWR ADC and Its Application in Audio Acquisition Systems

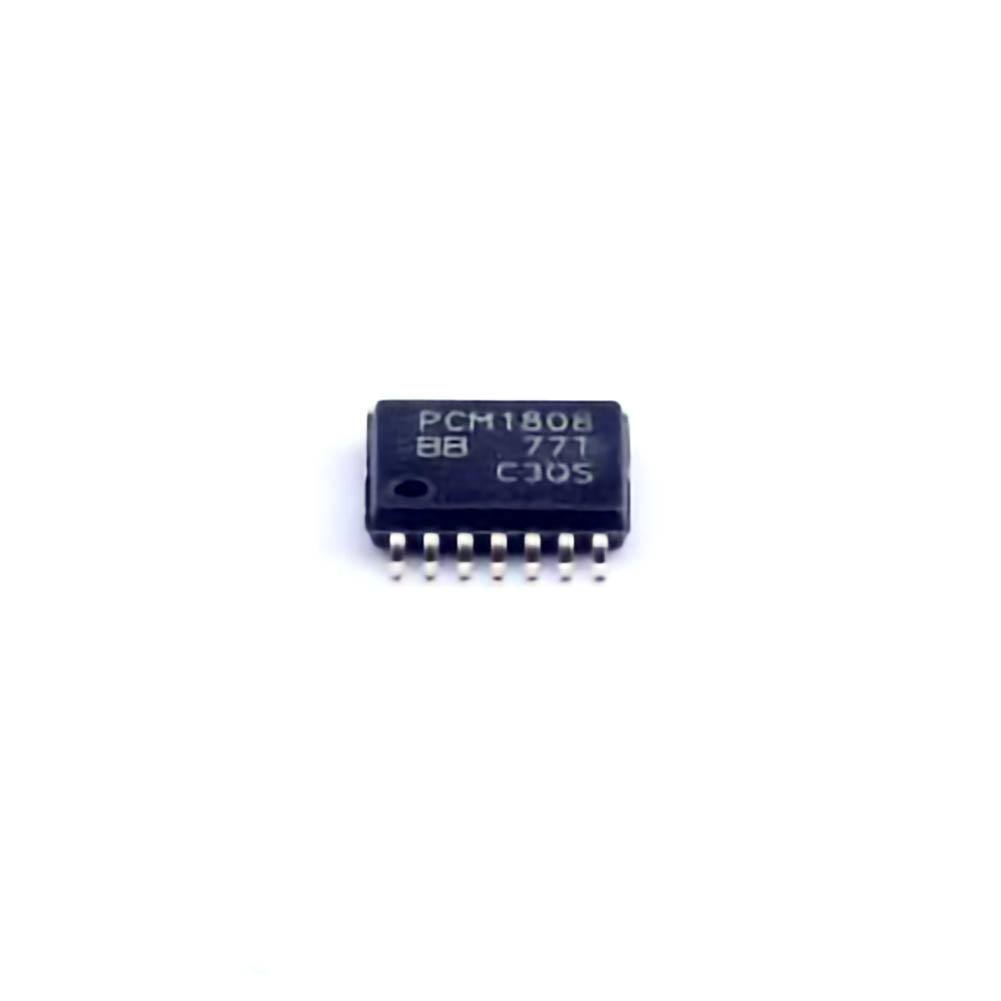

The PCM1808PWR from Texas Instruments is a highly capable 24-bit analog-to-digital converter (ADC) designed for high-performance audio acquisition systems. This chip is widely used in applications such as professional audio equipment, consumer electronics, and automotive infotainment systems, where precise audio conversion and low noise levels are critical. In this section, we will explore the key features of the PCM1808PWR and examine its application in various audio acquisition systems.
Key Features of the PCM1808PWR ADC
The PCM1808PWR is engineered with a focus on high-resolution audio conversion. Some of its most notable features include:
24-bit Resolution:
With a 24-bit resolution, the PCM1808PWR offers extremely fine granularity in audio signal representation. This resolution ensures that the ADC can accurately capture the full range of audio frequencies and dynamics, providing clear and precise output for professional-grade audio applications.
Low Power Consumption:
The PCM1808PWR is designed with power efficiency in mind. It operates on a low-voltage supply and consumes minimal power, which makes it an ideal choice for battery-operated devices or systems requiring low power consumption without compromising on audio performance.
High Signal-to-Noise Ratio (SNR):
One of the standout features of the PCM1808PWR is its impressive SNR, which allows for cleaner audio signals with minimal interference. The ADC achieves an SNR of up to 105 dB, ensuring that the final digitized signal remains as faithful as possible to the original analog source.
Differential Input for Better Noise Rejection:
The differential input architecture of the PCM1808PWR minimizes common-mode noise and distortion, which is especially beneficial in noisy environments or in applications that require long signal transmission lines.
Multiple Audio interface Options:
The device supports various digital audio output formats, such as I2S and Left-Justified, making it versatile for integration with a wide range of digital audio processors, DACs, or microcontrollers.
High-Speed Operation:
Capable of converting audio signals at up to 192 kHz, the PCM1808PWR supports high-fidelity audio formats, making it suitable for both standard and high-definition audio systems.
Application in Audio Acquisition Systems
Audio acquisition systems often require the conversion of analog audio signals (from microphones, guitars, or other sources) into digital data that can be processed or transmitted. The PCM1808PWR is ideally suited for these applications due to its high performance and low power features. Let’s explore some common scenarios in which this ADC is utilized:
Professional Audio Equipment:
High-end mixers, audio interfaces, and digital audio converters (DACs) often rely on high-quality ADCs like the PCM1808PWR. In these systems, the ADC must capture the full dynamic range of audio signals to ensure that the final output is a true representation of the original sound. The low noise and high resolution of the PCM1808PWR make it perfect for capturing nuanced and complex audio sources.
Consumer Electronics:
Devices such as home theater systems, soundbars, and wireless speakers also require precise audio acquisition for optimal performance. The PCM1808PWR is commonly used in these devices to ensure that audio signals are accurately converted to digital data without introducing distortion or noise, enhancing the overall listening experience for consumers.
Automotive Infotainment:
Automotive systems, including infotainment and navigation systems, utilize the PCM1808PWR to digitize audio signals from microphones or external sources. The low power consumption is especially beneficial in automotive environments, where power efficiency is crucial for the system's overall performance.
Medical Equipment:
In medical applications like hearing aids or diagnostic equipment, the PCM1808PWR’s precision and low noise characteristics make it an excellent choice for accurate audio data acquisition. The high SNR and low distortion ensure that the captured audio signals are pristine and suitable for analysis or processing.
Home Automation Systems:
Many home automation systems integrate voice recognition and audio signal processing to enable smart control of appliances. The PCM1808PWR is ideal for such systems, providing the necessary accuracy and reliability for voice command recognition.
Challenges in Audio Acquisition Systems
While the PCM1808PWR is an excellent choice for audio acquisition, integrating it into an audio system requires careful consideration of several factors:
Clock Jitter and Timing Issues:
ADCs like the PCM1808PWR are sensitive to clock jitter and other timing issues, which can introduce distortion into the digitized audio signal. To mitigate this, it’s crucial to implement a clean and stable clock signal for synchronization.
Power Supply Noise:
While the PCM1808PWR is designed to reject common-mode noise, fluctuations or noise in the power supply can still impact its performance. Using a low-noise voltage regulator and proper grounding techniques can help minimize this issue.
Thermal Noise and System Integration:
As with any analog component, thermal noise can influence the accuracy of the PCM1808PWR’s conversion. Adequate cooling and good system design can minimize this effect, ensuring the ADC operates at optimal levels.
Performance Tuning and Optimization for PCM1808PWR in Audio Acquisition Systems
After understanding the core features and applications of the PCM1808PWR, the next step is to explore how to optimize its performance within an audio acquisition system. This section will discuss the best practices for performance tuning, including signal conditioning, clock Management , power optimization, and system integration tips.
Optimizing Signal Conditioning for PCM1808PWR
Signal conditioning is essential for ensuring that the analog input signals are within the ideal voltage range for the PCM1808PWR. Below are several considerations for optimizing signal conditioning:
Input Impedance Matching:
Ensuring proper impedance matching between the source and the ADC input is crucial for maximizing signal transfer and minimizing distortion. Mismatched impedances can lead to signal attenuation or reflections, resulting in a degraded audio quality. The PCM1808PWR typically works best with sources that present a high input impedance, so an appropriate buffer or pre-amp might be needed depending on the application.
Low-Pass Filtering:
High-frequency noise or aliasing can affect the quality of the digitized signal. To mitigate this, a low-pass filter should be employed to remove unwanted high-frequency components before they reach the ADC. A well-designed anti-aliasing filter ensures that only the desired audio frequencies are converted, preserving signal integrity.
Differential Signaling:
The PCM1808PWR’s differential input structure provides better noise immunity compared to single-ended signals. By using differential signaling throughout the system, you can achieve lower distortion and a higher SNR, especially in environments with electrical noise or long cable runs.
Clock Management for Accurate Conversion
The accuracy of the PCM1808PWR’s conversion is highly dependent on the quality of the clock signal used for timing. Clock jitter, phase noise, or other timing inaccuracies can introduce errors in the digitized signal. To minimize these effects:
Use a High-Quality Clock Source:
Choose a high-precision, low-jitter clock generator for your system. This will help ensure that the PCM1808PWR receives a stable and accurate clock signal, reducing any timing errors or distortions in the conversion process.
Clock Synchronization:
In multi-channel audio systems, synchronizing the clocks of multiple PCM1808PWR devices is crucial to prevent drift and ensure that all ADCs are aligned in time. Use a master clock with proper synchronization mechanisms (such as word clock or I2S sync) to keep all devices in phase.
Power Supply Optimization
While the PCM1808PWR is designed to operate with low power consumption, ensuring a clean and stable power supply is essential for maintaining its high performance. Here are some strategies for power optimization:
Use Low-Noise Power Regulators:
A low-noise voltage regulator will help minimize any power supply fluctuations or noise that could be introduced into the signal path. This is especially important when operating in sensitive environments where high SNR is required.
Isolate Power and Ground Planes:
Ensure that the power and ground planes are properly isolated from other noisy components in the system, such as high-current devices or digital processors. This will reduce the risk of cross-talk or power line noise impacting the ADC’s performance.
Minimize Power Supply Ripple:
High ripple in the power supply can result in voltage fluctuations that directly affect the performance of the PCM1808PWR. Adding decoupling capacitor s near the power pins of the ADC can help filter out any ripple and provide a clean voltage supply.
System Integration and Layout Considerations
When integrating the PCM1808PWR into an audio acquisition system, careful PCB layout is essential to achieving the best possible performance. Key considerations include:
Signal Path Routing:
Keep the analog signal paths as short and direct as possible to minimize signal degradation. Also, ensure that the analog and digital sections of the PCB are properly separated to prevent noise coupling.
Proper Grounding:
Establish a solid ground plane that connects all components to reduce the likelihood of noise interference. Star grounding techniques can be used to direct noise currents away from sensitive analog components.
Thermal Management :
Ensure that the PCM1808PWR operates within its specified temperature range. If necessary, implement heat sinks or other cooling mechanisms to maintain optimal performance.
Conclusion
The PCM1808PWR ADC is an incredibly versatile and high-performance component for audio acquisition systems. By carefully considering factors like signal conditioning, clock management, power supply optimization, and system integration, engineers can unlock the full potential of this chip. Whether for professional audio equipment, consumer electronics, automotive systems, or medical devices, the PCM1808PWR offers an excellent balance of performance, power efficiency, and reliability. With the right tuning and optimization strategies, it is possible to achieve unparalleled audio fidelity and system performance.
