Common STM32L496RET6 Issues and How to Solve Them

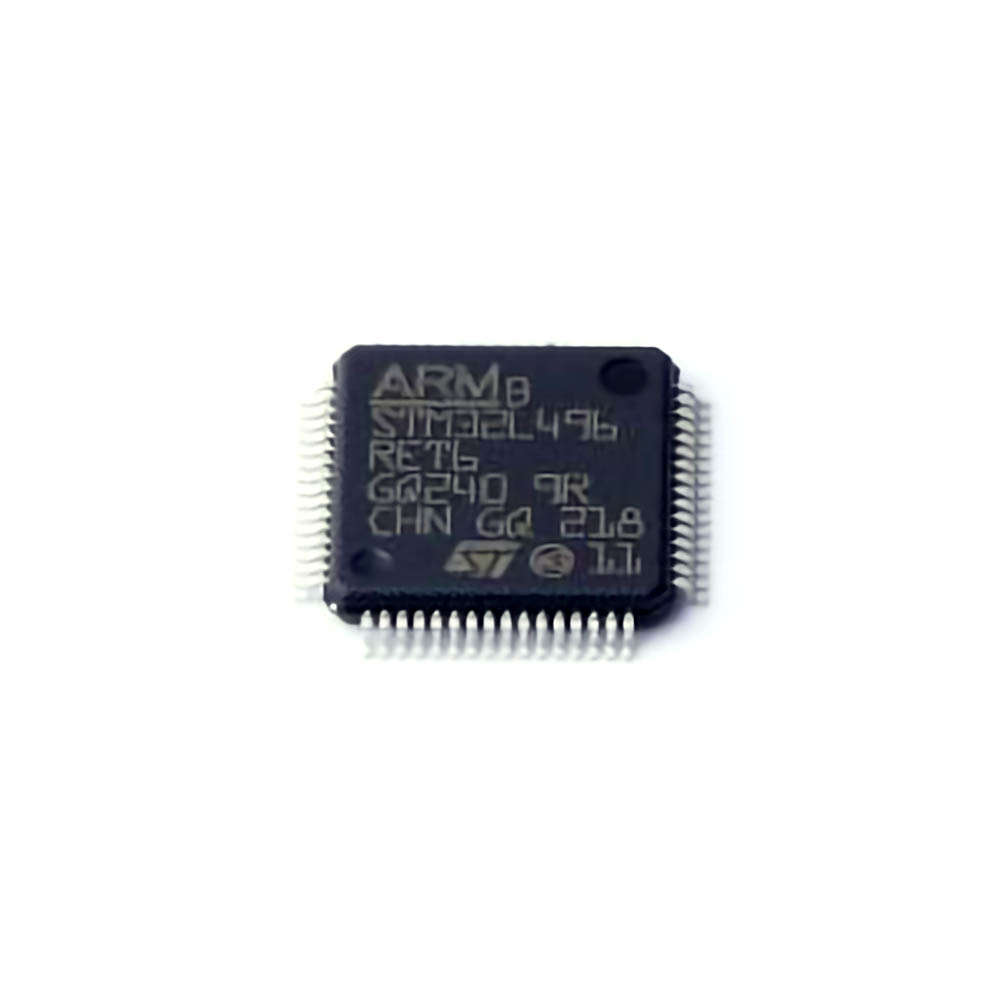

The STM32L496RET6 is a powerful and energy-efficient microcontroller, widely used in various embedded systems applications such as IoT, industrial automation, and consumer electronics. However, even with its advanced features, developers often encounter issues during the design and development phase. In this section, we'll address some of the most common problems faced when working with the STM32L496RET6 and suggest practical solutions.
1. Power Supply Issues
One of the most frequent problems faced by developers is related to the power supply. The STM32L496RET6 is designed to be energy-efficient, but improper power management or incorrect voltage levels can lead to unpredictable behavior.
Common Symptoms:
The microcontroller fails to start up.
The microcontroller enters an undefined state.
Unstable operation, including erratic peripheral behavior.
Troubleshooting Steps:
Check Voltage Levels: Ensure that the supply voltage is within the specified range (2.0V to 3.6V for the STM32L496RET6). Using a multimeter, check the voltage at the VDD pin to verify correct levels.
Decoupling Capacitors : Place appropriate decoupling capacitor s (typically 100nF and 10µF) near the power pins of the microcontroller to filter out noise and stabilize power.
Power-On Reset: Ensure that the microcontroller is correctly powered-up using a reliable power-on reset circuit. Missing or incorrect reset signals can cause the MCU to malfunction or enter an unknown state.
Low Power Modes: Verify that the microcontroller's low-power modes (like Sleep, Stop, or Standby) are configured correctly if they are being used. Improper configuration of these modes can result in the MCU appearing to be "dead."
2. Incorrect Clock Configuration
Clock configuration is another area where developers often encounter problems. The STM32L496RET6 has multiple clock sources, including an internal RC oscillator, an external crystal oscillator, and a high-speed PLL. Incorrect configuration of these clocks can lead to system instability.
Common Symptoms:
System fails to boot or reset properly.
Peripheral functionality is erratic or slow.
Incorrect system clock or peripheral clock speeds.
Troubleshooting Steps:
Verify Clock Source: Ensure that the correct clock source is selected in the CubeMX configuration tool. If you’re using an external crystal, confirm that it is connected and properly functioning.
Check PLL Settings: The PLL (Phase-Locked Loop) is crucial for generating high-frequency system clocks. Ensure that the PLL configuration is correctly set up, especially the PLL source, multiplier, and divider values.
Use CubeMX for Clock Configuration: Use STM32CubeMX to graphically configure clock settings. The tool will help you avoid mistakes and ensure all clocks are properly connected and set.
Check Peripheral Clocks: Each peripheral has its own clock settings. Ensure that the peripheral clocks are enabled correctly and within the required frequencies.
3. I2C Communication Issues
I2C is one of the most commonly used communication protocols in embedded systems, and the STM32L496RET6 has dedicated hardware support for I2C communication. However, improper configuration or external issues can cause communication failures.
Common Symptoms:
Devices on the I2C bus fail to communicate.
I2C data corruption or incomplete transactions.
Bus hang or timeout errors.
Troubleshooting Steps:
Check Pull-Up Resistors : The I2C bus requires pull-up resistors on both the SDA and SCL lines. Ensure that appropriate resistors (typically 4.7kΩ to 10kΩ) are connected.
Verify I2C Speed: Ensure that the I2C bus speed is within the limits of both the STM32L496RET6 and the connected devices. Too high of a clock speed can lead to data corruption.
Inspect Bus Traffic: Use an oscilloscope to check the signal integrity on the I2C bus. Look for glitches or incorrect signal levels that might be causing communication problems.
Check for Address Conflicts: Make sure there are no address conflicts on the I2C bus. Each device must have a unique address.
4. Debugging with JTAG/SWD
JTAG and SWD (Serial Wire Debug) are essential for debugging embedded systems. Sometimes, developers may experience issues with JTAG/SWD connectivity, which can impede the debugging process.
Common Symptoms:
Debugger not able to connect to the STM32L496RET6.
Debugger disconnects intermittently.
Unexpected behavior or error messages in the debugger.
Troubleshooting Steps:
Check Debug Port: Ensure that the correct debug port (SWD or JTAG) is selected in your development environment and properly connected.
Check Debug interface Pins: Verify that the SWD or JTAG pins (SWDIO, SWCLK, TMS, TDI) are correctly routed and not being interfered with by other signals.
Power Issues: Make sure the power supply to both the microcontroller and debugger is stable and adequate.
Reset Target MCU: Sometimes, the microcontroller may enter a state where it is unresponsive to the debugger. Manually reset the MCU and try reconnecting the debugger.
5. Firmware and Software Issues
Software bugs or incorrect firmware updates are among the most common reasons for unexpected behavior. These can range from improper initialization to logical errors in the application code.
Common Symptoms:
Unexpected application crashes.
Peripheral functions not working as expected.
Incorrect sensor readings or output signals.
Troubleshooting Steps:
Check Firmware Version: Always ensure that you're using the correct and latest version of the firmware. Update libraries or HAL drivers if necessary.
Use STM32CubeMX for Initialization Code: STM32CubeMX provides an automatic initialization function that generates boilerplate code for peripheral setups. Ensure that your initialization code matches your hardware configuration.
Review Interrupts and Timers: Interrupt-related issues can often cause misbehaving peripherals or application crashes. Verify that interrupt handlers are properly configured and that timer interrupts are not misfiring.
Use Debugging Tools: Use breakpoints, watch variables, and step-through debugging to isolate issues. Tools like ST-Link, GDB, and Eclipse can help pinpoint the root cause of the issue.
Advanced Troubleshooting and Solutions for STM32L496RET6
In the second part of this article, we'll dive deeper into more advanced troubleshooting strategies for the STM32L496RET6, focusing on complex problems such as advanced peripheral issues, bootloader problems, and firmware corruption.
6. Advanced Peripheral Configuration Issues
The STM32L496RET6 has numerous peripherals, such as ADCs, DACs, timers, and communication interfaces. Misconfigurations in these peripherals can result in subtle and difficult-to-diagnose errors.
Common Symptoms:
Analog-to-digital or digital-to-analog conversions fail.
Timers do not trigger as expected.
Communication interfaces like SPI or UART do not function properly.
Troubleshooting Steps:
Check Peripheral Initialization: Verify that the peripherals are correctly initialized, and all necessary pins (e.g., for UART, SPI, etc.) are correctly configured.
Use CubeMX for Peripheral Settings: STM32CubeMX provides an easy-to-use interface for configuring peripheral settings, ensuring that all the correct parameters are set for your application.
Verify Clock Settings for Peripherals: Ensure that the clock for the specific peripheral is enabled. Some peripherals (like the ADC or DAC) require dedicated clock sources.
Inspect Pin Configuration: Sometimes, peripherals may not work due to incorrect pin configuration, especially when alternate functions are used (e.g., using a pin for UART instead of GPIO).
7. Bootloader and Firmware Corruption
Occasionally, bootloaders or firmware can become corrupted due to power loss during firmware updates or improper programming techniques.
Common Symptoms:
MCU doesn't boot correctly or enters a fault state.
Application fails to load or runs outdated firmware.
Flash programming errors or verification failures.
Troubleshooting Steps:
Check Boot Mode Configuration: Ensure that the BOOT0 pin is properly configured to enter the correct boot mode. If you are loading firmware via the system bootloader, the BOOT0 pin should typically be set to low (0).
Re-flash the MCU: Use a programmer (like ST-Link) to re-flash the firmware onto the STM32L496RET6. Ensure that no errors occur during the flashing process.
Perform a Mass Erase: If the firmware is corrupted, performing a mass erase on the flash memory can help to clear out any old or corrupted data.
Check the Flash Sector: If you're using internal flash to store application data, make sure that the relevant sectors are not locked or corrupted.
8. Handling External Interference and Noise
In embedded systems, external electrical noise can affect the operation of the STM32L496RET6. This is particularly important for analog peripherals like ADCs or DACs, where noise can distort readings.
Common Symptoms:
Erratic or incorrect sensor readings.
Digital signals or communication protocols (e.g., SPI, I2C) fail intermittently.
Unexpected resets or system crashes.
Troubleshooting Steps:
Shielding: Ensure that sensitive analog lines are properly shielded from external electrical noise. Use proper PCB layout practices to reduce noise.
Use of Capacitors: Use capacitors at power supply pins and critical signal lines to filter out high-frequency noise.
Twisted Pair Cables: If using communication lines over longer distances, use twisted pair cables to minimize the impact of electromagnetic interference ( EMI ).
9. Reset and Brown-out Detection Issues
The STM32L496RET6 includes a brown-out detector (BOD) that resets the device when the supply voltage drops below a predefined threshold. However, misconfigurations can cause frequent resets or failure to reset.
Common Symptoms:
The microcontroller resets unexpectedly.
The application does not recover from a low-voltage state.
Troubleshooting Steps:
Configure BOD Level: Ensure that the brown-out detection level is correctly configured for your application's voltage range. Use the STM32CubeMX tool to adjust this setting.
Monitor Supply Voltage: Use an oscilloscope or voltmeter to monitor the supply voltage. If there is significant noise or voltage drops, it may trigger false resets.
Disable BOD: If not needed, consider disabling the brown-out detection to avoid unnecessary resets, but be cautious of unstable power supply conditions.
10. Update Firmware and Libraries Regularly
Keeping your development tools and libraries up to date is vital for long-term success with STM32L496RET6. Bug fixes, new features, and security patches are regularly released.
Common Symptoms:
Features that stop working after firmware updates.
New bugs introduced after changes.
Troubleshooting Steps:
Check for Firmware Updates: Regularly check for firmware updates on ST’s website or via STM32CubeMX.
Update HAL Libraries: If you are using STM32 HAL libraries, make sure they are the latest stable version.
Testing with Known Good Versions: If issues arise after updates, revert to a previously working version of your firmware or libraries to isolate the problem.
Conclusion
Troubleshooting and debugging STM32L496RET6 issues can be complex, but with a systematic approach, most problems can be resolved efficiently. Whether it's power supply issues, clock misconfigurations, peripheral problems, or debugging challenges, following the outlined steps will help you tackle these common issues with confidence. Always ensure that you're using the latest tools and firmware updates to get the most out of your STM32L496RET6 microcontroller. Happy coding!
