Understanding the AD5754RBREZ and Common Troubleshooting Issues

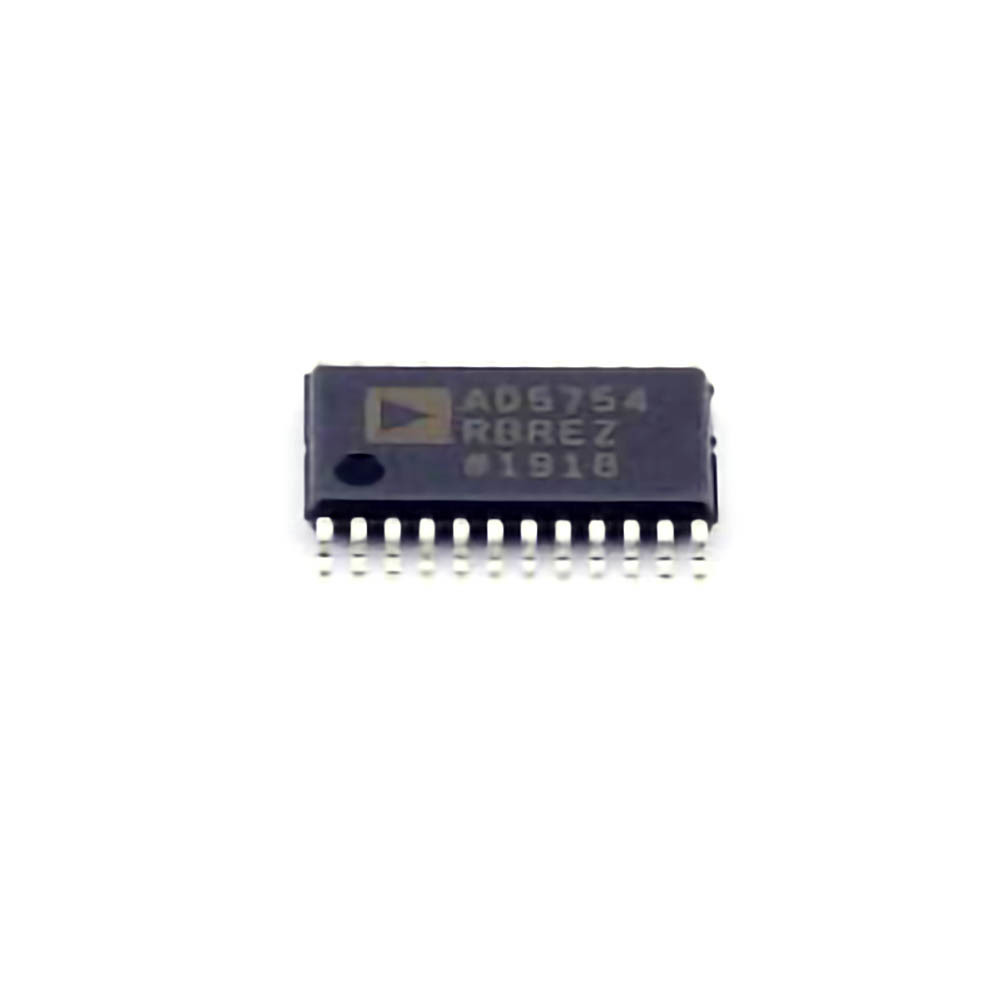

The AD5754RBREZ is a highly capable Digital-to-Analog Converter (DAC) from Analog Devices, featuring precision voltage outputs suitable for industrial control, process automation, and test equipment applications. Designed for high-resolution and low- Power operation, the AD5754RBREZ provides quad-output channels, enabling users to simultaneously generate up to four analog voltage signals with precision control.
However, like any sophisticated electronic device, users may occasionally run into challenges during the integration or operation of the AD5754RBREZ. Understanding the potential issues and knowing how to troubleshoot them is crucial for ensuring the device operates smoothly in critical applications.
1. Power Supply and Grounding Issues
A common issue with precision DACs like the AD5754RBREZ often relates to power supply instability or insufficient grounding. These problems can manifest in several ways, including fluctuating output voltages, noise in the signal, or failure to power on correctly. In particular:
Power Supply Voltage: The AD5754RBREZ requires a stable and clean power supply for optimal operation. Any fluctuations in the supply voltage, such as power surges or dips, can disrupt the accuracy of the DAC’s output. Make sure the supply voltage meets the specifications (typically 5V for the AD5754RBREZ), and consider adding decoupling capacitor s near the device to filter out noise.
Ground Loops: Grounding issues are another frequent cause of malfunction. Ground loops can induce noise into the signal, causing unwanted fluctuations in the DAC output. Always ensure that the analog and digital grounds are properly connected and kept separate to avoid interference.
Solution: Ensure the power supply is clean, stable, and meets the voltage requirements. Implement proper grounding techniques, keeping analog and digital grounds isolated wherever possible.
2. Output Signal Inaccuracies and Calibration Problems
Output inaccuracies can occur due to a variety of factors, such as incorrect calibration, improper reference voltage, or even device malfunction. The AD5754RBREZ requires precise calibration to achieve its high accuracy, and any miscalibration can lead to significant errors in output voltage.
Calibration: The AD5754RBREZ offers onboard calibration features to improve output accuracy. If the DAC is not calibrated correctly, it may produce incorrect output signals. It's essential to perform a full calibration process after any changes in system configuration or setup to guarantee correct operation.
Reference Voltage Issues: The DAC relies on an accurate external reference voltage to set the output voltage range. If the reference voltage is incorrect or noisy, it can affect the entire output. Ensure that the reference voltage used with the AD5754RBREZ is stable, within the recommended range, and free from noise.
Device Temperature: Temperature variations can impact the performance of the DAC, leading to shifts in output values. It is essential to monitor the operating environment and, if necessary, implement temperature compensation to maintain accuracy.
Solution: Perform a full calibration using the onboard calibration tools. Ensure that the external reference voltage is stable and accurate. Additionally, monitor temperature fluctuations to avoid performance drift.
3. Communication Errors (SPI interface )
The AD5754RBREZ communicates with the host processor via the Serial Peripheral Interface (SPI). Communication errors can disrupt the transmission of data between the DAC and the controller, leading to issues such as no output, inconsistent output levels, or loss of communication.
SPI Clock Frequency: One common issue is operating the SPI clock frequency too high or too low, which can lead to unreliable data transmission. Ensure that the SPI clock frequency is within the recommended range specified in the datasheet (typically 10 MHz to 20 MHz).
Signal Integrity: The SPI signals must maintain good integrity throughout the transmission. Use proper trace routing, and ensure that the signal lines are kept short to minimize noise or signal degradation. Additionally, check the power supply decoupling and grounding for the SPI signals.
Correct Command Protocol: Ensure that the correct SPI command sequences are used when configuring the AD5754RBREZ. Incorrect SPI commands can result in the DAC not properly interpreting input data, leading to erratic or non-functional output.
Solution: Check the SPI clock settings and ensure the frequency is within the acceptable range. Verify the integrity of the SPI signals and minimize noise sources. Double-check the SPI command sequences to ensure proper communication with the DAC.
4. Output Drive Capability and Loading Effects
Another potential problem involves the load on the DAC outputs. The AD5754RBREZ is designed to drive a certain maximum load, but connecting it to loads that exceed this limit can cause voltage sag or signal degradation.
Output Load Resistance : Ensure that the connected load does not exceed the specified output drive capabilities of the DAC. The AD5754RBREZ can drive 0 to 10V outputs, but if the load requires more current than the DAC can supply, the output voltage may not reach the desired level.
Capacitive Loads: Capacitive loads can also cause problems. If the DAC is driving large capacitive loads, such as long cables or high-capacitance circuits, it may struggle to maintain a stable output. This could lead to instability or oscillations in the output signal.
Solution: Check the load specifications and ensure that the connected load is within the acceptable limits of the AD5754RBREZ. For capacitive loads, consider using a series resistor or a buffer to maintain stable operation.
5. Overcurrent or Overvoltage Protection
Finally, protecting the AD5754RBREZ from overcurrent or overvoltage conditions is crucial to ensuring its longevity and reliable operation. Overvoltage conditions can occur if the DAC’s outputs are accidentally driven beyond their rated voltage, while overcurrent can result from short circuits or excessive load conditions.
Overcurrent Protection: The AD5754RBREZ has built-in protection, but it’s still essential to check for any possible short circuits in the output circuitry. Overcurrent can damage internal components, leading to permanent failure.
Overvoltage Protection: Similarly, excessive voltage on the output can cause permanent damage. Use external clamping diodes or fuses to protect the device from spikes or voltage transients.
Solution: Ensure that external protection circuitry is in place to protect the DAC from overcurrent or overvoltage conditions. Always check for short circuits or wiring errors before powering up the system.
Advanced Troubleshooting and Diagnostic Techniques for the AD5754RBREZ
In addition to the basic troubleshooting methods covered in Part 1, several advanced diagnostic techniques can help resolve more complex issues that may arise when using the AD5754RBREZ. By employing these techniques, users can ensure more robust and reliable operation of the DAC in various applications.
1. Using the Internal Diagnostics Features
The AD5754RBREZ has several internal diagnostic features that can be accessed through its SPI interface. These diagnostics can help identify problems with the device’s internal functionality, providing a way to monitor key parameters without needing to probe the physical outputs directly.
Internal Temperature Sensor : The DAC includes an onboard temperature sensor that can help detect temperature-related issues that might affect output performance. By reading the temperature data via SPI, users can identify whether temperature fluctuations are contributing to output inaccuracies.
Open-Loop Diagnostics: The DAC can also run diagnostic tests to check the status of its internal circuitry. These diagnostics can help pinpoint faulty channels, incorrect configurations, or other malfunctions.
Solution: Utilize the onboard diagnostic tools to monitor internal parameters like temperature and circuit health. This can help quickly isolate and address issues related to the DAC’s internal performance.
2. Signal Analysis with an Oscilloscope
In situations where the output signal seems erratic or unstable, performing a signal analysis with an oscilloscope can provide valuable insights. By examining the waveform of the DAC’s output, users can determine if there are any irregularities, such as noise, glitches, or incorrect voltage levels.
Noise Issues: Oscilloscopes can reveal noise or ripple in the output signal, which may be caused by power supply issues or insufficient decoupling. By monitoring the signal under various conditions, users can identify the source of the noise and take corrective action.
Voltage Transients: Short voltage spikes or transients can also be detected with an oscilloscope. These spikes may be caused by load changes, switching events, or external interference. Capturing these transients can help pinpoint their cause and guide troubleshooting efforts.
Solution: Use an oscilloscope to capture and analyze the DAC output waveform. This can help diagnose issues related to noise, signal integrity, and voltage transients.
3. Monitoring the SPI Bus Activity
Another important diagnostic method is to monitor the SPI bus activity between the host processor and the AD5754RBREZ. By using an SPI analyzer or logic analyzer, users can check the integrity of the SPI data transmission.
Clock and Data Signals: Verify that the SPI clock and data signals are clean, with no signal glitches or timing mismatches. Inconsistent clock signals or corrupted data can result in incorrect DAC configuration or malfunction.
Command Validation: By observing the SPI commands sent to the DAC, users can confirm that the correct instructions are being issued for output control and configuration.
Solution: Use an SPI analyzer or logic analyzer to monitor and validate the data communication between the host and the DAC.
4. Thermal Management and Heat Dissipation
In high-performance systems, thermal management can be crucial to ensure the proper operation of the AD5754RBREZ. Overheating can lead to performance degradation, including shifts in output voltage, loss of accuracy, or even permanent damage.
Heat Sinks and Cooling: For applications with high ambient temperatures or heavy processing requirements, it may be necessary to implement heat sinks or active cooling systems. Ensure that the DAC’s operating environment is within the recommended temperature range.
Thermal Shutdown: Some DACs incorporate thermal shutdown mechanisms to protect against overheating. If the device experiences high temperatures, it may enter thermal shutdown mode, causing a temporary loss of functionality.
Solution: Monitor the operating temperature of the device and implement appropriate thermal management solutions, such as heat sinks or active cooling, to prevent overheating.
Conclusion
The AD5754RBREZ is a powerful, high-precision DAC that can provide reliable analog output for a wide range of industrial and control applications. However, as with any sophisticated device, it’s essential to understand the common troubleshooting issues and how to address them effectively.
By focusing on power supply stability, proper calibration, accurate reference voltages, and ensuring correct SPI communication, users can avoid most of the common issues encountered with the AD5754RBREZ. Advanced diagnostic techniques, such as using onboard diagnostics, oscilloscopes, and monitoring the SPI bus, can help quickly identify and resolve more complex problems.
With the right troubleshooting steps and a solid understanding of the device’s features, users can ensure that the AD5754RBREZ continues to deliver reliable and precise performance for years to come.
