Common Issues and Troubleshooting Methods for the TLE4264G

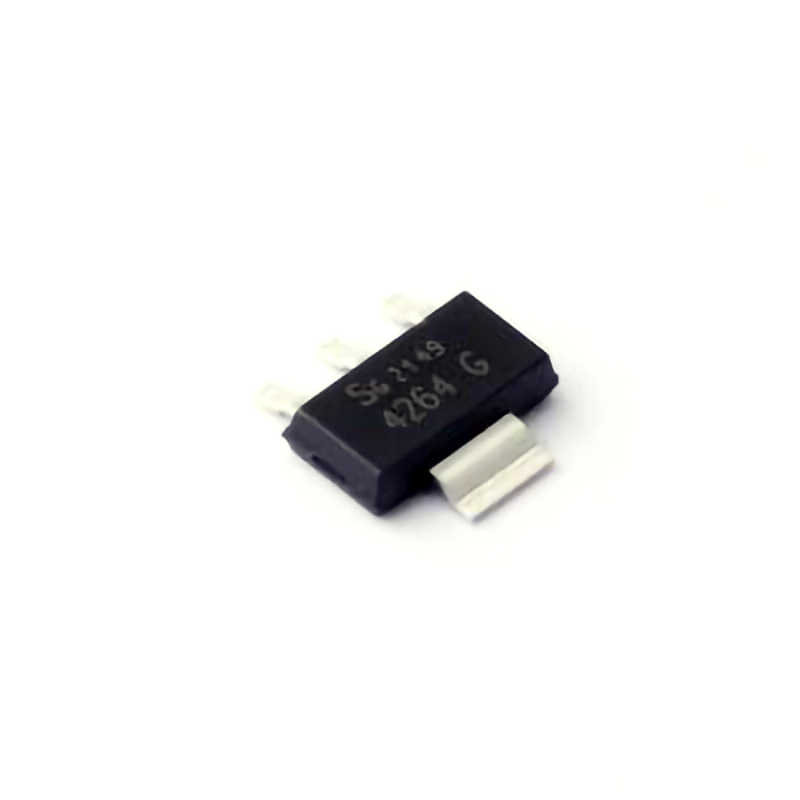

The TLE4264G is a robust linear voltage regulator designed for automotive and industrial applications, offering low dropout voltage, high current capabilities, and thermal protection features. Despite its reliability, like any electronic component, the TLE4264G may encounter issues over time. In this first part, we’ll cover the most common problems and how to troubleshoot them effectively.
1. Voltage Fluctuations
Problem:
One of the most common issues with the TLE4264G is voltage fluctuations, where the output voltage fluctuates instead of remaining stable at the desired level. This can be caused by several factors, including poor input conditions or problems with the load.
Troubleshooting Steps:
Check Input Voltage Stability: The TLE4264G requires a stable input voltage above the specified dropout voltage. If the input voltage dips too low, the regulator will not be able to maintain a stable output voltage. Ensure the input voltage is within the recommended range (typically between 5V and 40V depending on the specific model).
Check Load Conditions: A fluctuating or unstable load can cause the output voltage to drop or fluctuate. Ensure that the load connected to the TLE4264G is within the regulator’s rated current range.
Inspect Capacitors : The TLE4264G requires appropriate input and output capacitor s to maintain stability. Incorrect or faulty capacitors can lead to voltage instability. Use the recommended capacitor values (e.g., 100nF for input and 47μF for output).
Verify PCB Layout: A poor PCB layout can introduce noise or unstable signals that affect the regulator’s performance. Ensure that the ground and power traces are as short and thick as possible to minimize Resistance and inductance.
2. Thermal Shutdown and Overheating
Problem:
Thermal shutdown is another common issue. The TLE4264G features thermal protection to prevent damage from overheating, but excessive power dissipation can cause the regulator to enter a thermal shutdown state. This can happen if the regulator is under heavy load or if there’s inadequate heat dissipation.
Troubleshooting Steps:
Calculate Power Dissipation: The power dissipated by the TLE4264G can be calculated by the formula ( P = (V{in} - V{out}) \times I_{load} ). Ensure that the difference between input and output voltage is not excessively high, and check if the current load is within safe limits.
Improve Heat Sinking: If the regulator is operating under heavy load, it may require additional heat sinking. Use a heatsink or improve airflow around the regulator to dissipate heat more effectively.
Check Ambient Temperature: The ambient temperature can significantly affect the regulator’s thermal performance. Ensure the system is operating in a temperature range that is suitable for the TLE4264G, typically between -40°C to 125°C.
Monitor Thermal Shutdown: If the regulator is entering thermal shutdown mode frequently, this is a sign that the heat dissipation needs to be improved. Consider using a more efficient regulator or lowering the input voltage to reduce power dissipation.
3. Short Circuit Protection Triggered
Problem:
The TLE4264G includes short circuit protection, which triggers when the output is shorted to ground or to a low impedance path. If this happens, the regulator may stop supplying voltage to protect itself from damage.
Troubleshooting Steps:
Check for Short Circuits: The first step is to visually inspect the circuit for any obvious short circuits, such as solder bridges, faulty components, or damaged traces.
Measure Output Voltage: If the output is not present, measure the output pin with a multimeter. If the voltage is close to 0V, it may indicate that the short circuit protection is active.
Test the Load: A faulty load may draw excessive current, triggering the short circuit protection. Disconnect the load and measure the output again to see if the protection is still active.
Restore Normal Operation: Once the short circuit is identified and corrected, the regulator should return to normal operation. If the problem persists, there may be internal damage to the regulator, and replacement may be necessary.
4. Poor Transient Response
Problem:
The TLE4264G’s transient response refers to its ability to maintain a stable output voltage when the load changes suddenly. A poor transient response can cause significant voltage dips or overshoots, which may affect the performance of sensitive electronics.
Troubleshooting Steps:
Check Input Capacitor Size: A small or faulty input capacitor can cause a poor transient response. Ensure that the input capacitor is of the recommended type and value (typically around 100nF to 1μF).
Check Output Capacitor Size: The TLE4264G requires an output capacitor to stabilize its output. Ensure that the output capacitor is of sufficient size and placed as close as possible to the output pin.
Evaluate Load Step Magnitude: The regulator may not respond well to large or sudden changes in load. Evaluate the magnitude of the load change and ensure that the regulator is appropriately rated for such dynamic conditions.
5. Noise and Ripple Issues
Problem:
Excessive noise and ripple on the output can be a significant issue, especially in sensitive applications such as automotive electronics or audio equipment. The TLE4264G, while designed for low-noise operation, may still exhibit noise if the circuit is improperly designed or if components are faulty.
Troubleshooting Steps:
Inspect Capacitors: The TLE4264G relies on capacitors for filtering noise and ripple. Ensure that both the input and output capacitors are of high quality and within the recommended specifications.
Improve Grounding: Poor grounding can introduce noise into the regulator’s operation. Ensure that the ground plane is well-connected and that there is minimal impedance between the regulator and other components.
Use Additional Filtering: If necessary, additional filtering components such as ferrite beads or extra decoupling capacitors can help reduce noise. Pay attention to the placement of these components to maximize their effectiveness.
Advanced Troubleshooting and Solutions for the TLE4264G
In this second part, we’ll dive deeper into advanced troubleshooting techniques and solutions to address more complex issues with the TLE4264G. These solutions are aimed at engineers and technicians dealing with more subtle or difficult-to-diagnose problems.
6. Inconsistent Output Voltage Under Load
Problem:
In some cases, the TLE4264G may provide an inconsistent output voltage when subjected to varying load conditions. This is especially common when the load fluctuates rapidly, causing instability in the regulator’s ability to maintain a steady output.
Troubleshooting Steps:
Check Feedback Network: The output voltage of the TLE4264G is regulated by a feedback network, typically consisting of resistors. If these resistors are out of tolerance or incorrectly chosen, the regulator may not maintain a consistent output under load. Measure the resistances and verify they are within specifications.
Assess Capacitor Placement: Capacitors on the feedback loop can impact the regulator’s performance. Ensure that these are placed optimally and are of the correct value to prevent oscillations or instability.
Test with a Constant Load: If possible, apply a constant load to the regulator and monitor its performance. If the output voltage remains stable under a constant load but fluctuates with varying loads, this points to issues with the load response or feedback loop.
7. Oscillation and Stability Issues
Problem:
Oscillation can occur if the regulator is not stable, especially in low-dropout scenarios where the regulator operates close to the input voltage. This is often accompanied by visible high-frequency noise or a fluctuating output.
Troubleshooting Steps:
Add a Compensation Capacitor: In some cases, adding a small compensation capacitor (e.g., 10nF to 100nF) between the output and feedback pins can improve stability and prevent oscillation.
Verify Capacitor Quality: Poor-quality or incorrect capacitors can lead to instability. Use low ESR (Equivalent Series Resistance) capacitors for both input and output to ensure stable operation.
Check for Ground Bounce: Oscillation can also result from high-frequency noise coupling through a poorly designed ground plane. Ensure that the ground traces are solid and uninterrupted, and avoid routing sensitive signal paths over noisy areas.
8. Component Aging and Long-Term Reliability
Problem:
Over time, components like the TLE4264G may experience degradation, leading to issues such as increased dropout voltage, reduced efficiency, or erratic behavior. This can be particularly troublesome in applications where the regulator operates in harsh environments (e.g., automotive or industrial applications).
Troubleshooting Steps:
Monitor Performance Over Time: Periodically monitor the regulator's output voltage and current consumption to detect gradual performance degradation. Look for signs of increased dropout voltage or excessive power dissipation.
Replace Aging Components: If you suspect aging components, consider replacing the TLE4264G or any surrounding passive components, especially if they show signs of wear such as discoloration or bulging.
Perform Thermal Cycling: For applications in extreme environments, perform thermal cycling tests to simulate long-term exposure to temperature variations. This will help identify any weaknesses in the regulator’s performance over time.
9. Unresponsive Regulator (No Output Voltage)
Problem:
A complete lack of output voltage from the TLE4264G can be caused by a variety of issues, including incorrect startup conditions, component failure, or a blown fuse.
Troubleshooting Steps:
Check Power Supply: Ensure that the power supply to the TLE4264G is working properly and that the input voltage is within the acceptable range.
Verify Enable Pin Status: The TLE4264G may have an enable pin that must be pulled high to activate the regulator. Check the enable pin status and verify that it is correctly driven.
Check for Component Failures: Inspect the TLE4264G and associated components for signs of failure. If the regulator is not providing output, there may be internal damage, and the component may need replacement.
This concludes part 2 of our in-depth troubleshooting guide for the TLE4264G. By following these steps and understanding the root causes of common issues, you can ensure the reliable operation of the TLE4264G and extend its lifespan in your electronic applications.
