Understanding the SY8205FCC and Common Issues

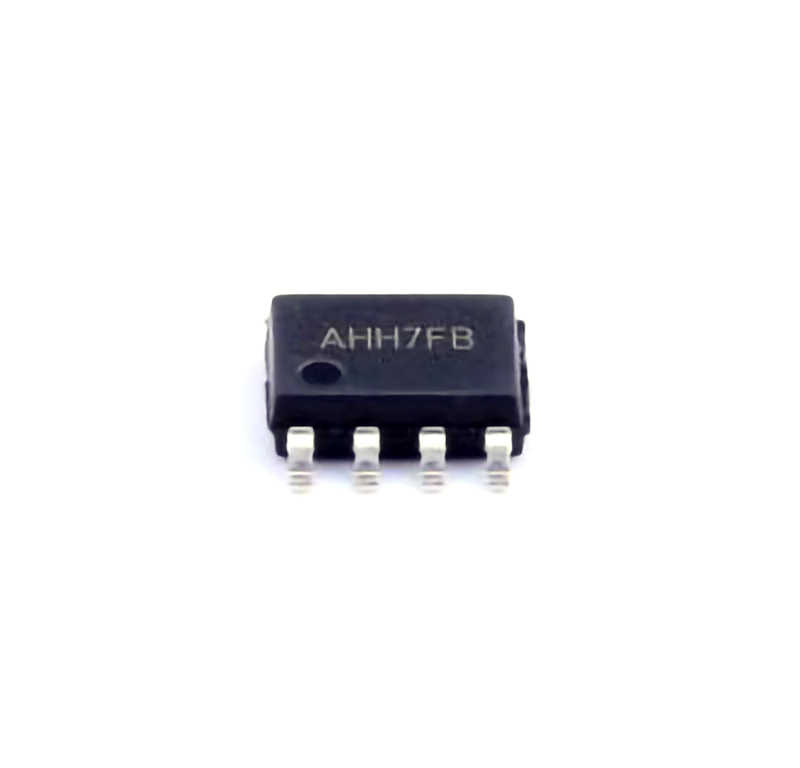

The SY8205FCC is a highly efficient power management integrated circuit (IC) widely used in consumer electronics, automotive, and industrial applications. Known for its versatility and reliability, it plays a critical role in regulating voltage and managing power within electronic systems. However, like any sophisticated electronic component, the SY8205FCC is not immune to issues. Troubleshooting problems with this chip requires a systematic approach, an understanding of common failures, and a clear path to resolution.
1. Introduction to the SY8205FCC
Before diving into specific issues, it’s essential to understand the role of the SY8205FCC in an electronic circuit. This chip is typically used in DC-DC buck converters, power management systems, and other applications requiring precise voltage regulation and power efficiency. It has several key features that make it popular:
Low dropout voltage: Ensures stable operation even when the input voltage is close to the output voltage.
High efficiency: The chip helps reduce power loss, making it an ideal choice for energy-conscious designs.
Overcurrent and overvoltage protection: Adds an extra layer of security by preventing damage due to excessive current or voltage.
While these features make the SY8205FCC an attractive choice, they also mean that any malfunction in this component can result in significant power disruptions, requiring prompt troubleshooting and solutions.
2. Common Symptoms of SY8205FCC Issues
When an SY8205FCC experiences problems, it typically manifests in several common ways:
Unstable output voltage: This could mean the chip is not regulating voltage properly, leading to erratic or inconsistent behavior in the system.
Overheating: An SY8205FCC IC that becomes excessively hot could be under strain or may be experiencing a fault condition.
Low efficiency: If the chip is not providing the expected power efficiency, it could be an indication of internal damage or incorrect configuration.
No output voltage: In more severe cases, the chip might fail entirely, leading to no power being delivered to the connected load.
Failure to start: If the power supply does not start up correctly, it could point to a deeper issue within the circuit design or the chip itself.
3. Step-by-Step Troubleshooting Guide
3.1 Check the Power Supply
Before blaming the SY8205FCC chip itself, ensure that the power supply feeding the circuit is functioning properly. Problems such as poor quality or unstable input power can lead to erratic behavior in the IC. Measure the input voltage and ensure it matches the required specifications for the chip. An unstable or too-low input voltage will prevent the SY8205FCC from working correctly.
3.2 Inspect Circuit Connections
A faulty connection can often be the culprit behind malfunctioning components. Ensure that all solder joints, especially around the SY8205FCC chip, are solid and free from cracks or shorts. Loose connections can lead to intermittent power delivery, resulting in erratic or unstable performance.
3.3 Measure Output Voltage
Use a multimeter to measure the output voltage of the SY8205FCC chip. Compare the readings with the expected output voltage levels. If the output voltage is incorrect or unstable, this could indicate a problem with the chip's voltage regulation or internal circuitry.
3.4 Check for Overheating
Overheating is a common symptom of faulty power management ICs. If the SY8205FCC feels unusually hot to the touch, it might be experiencing thermal overload or excessive current draw. If the IC is overheating, check the current load and ensure that the power dissipation of the chip is within safe limits. Proper heat sinking or thermal management may be necessary.
3.5 Investigate Overcurrent Protection
If the SY8205FCC’s overcurrent protection is triggered, it could be an indication of a short circuit or excessive load. Overcurrent protection mechanisms are built into the chip to prevent damage, but repeated activation can point to a deeper issue within the system, such as faulty wiring or an incorrectly sized load.
3.6 Verify Components Around the SY8205FCC
In many cases, the issue with the SY8205FCC might not be the chip itself but the components surrounding it. Check passive components like resistors, capacitor s, and inductors for proper values, signs of wear, or physical damage. A defective component in the feedback loop or the filtering network could be causing the chip to malfunction.
4. Solving the Common Problems
4.1 Resolving Unstable Output Voltage
An unstable output voltage can be a result of several factors, including incorrect feedback components, faulty capacitors, or incorrect input voltage. To fix this:
Check the feedback resistor values to ensure they match the design specifications.
Replace faulty capacitors that may have degraded over time.
Ensure the input voltage is within the acceptable range for the chip.
4.2 Fixing Overheating Issues
If the SY8205FCC is overheating, this could be due to excessive current draw or inadequate thermal dissipation. Try the following:
Reduce the load connected to the IC and check if the temperature decreases.
Improve cooling by adding a heatsink or improving airflow in the circuit.
Examine the power supply input for overvoltage conditions, which can cause the IC to work harder than necessary.
4.3 Enhancing Power Efficiency
To improve efficiency, ensure that the input voltage is optimized and that the circuit is operating within the SY8205FCC’s efficient range. Avoid high levels of current draw that can lead to increased power dissipation. Additionally, ensure the external components are sized correctly to match the chip's specifications.
Advanced Troubleshooting and Solutions for SY8205FCC
While Part 1 focused on common issues and basic troubleshooting steps, Part 2 will dive into more advanced problems and offer detailed solutions to help you resolve complex issues with the SY8205FCC chip.
1. Advanced Troubleshooting Techniques
1.1 Use of Oscilloscope for Signal Analysis
For more complex issues like ripple noise or instability at high frequencies, an oscilloscope can provide valuable insights. By probing the input and output pins of the SY8205FCC, you can analyze the waveform of the voltage signals. Look for irregularities such as:
Excessive ripple: Excess ripple could indicate that the filtering components are insufficient or malfunctioning.
Voltage spikes: These could indicate issues with load transient response or instability in the feedback loop.
1.2 Analyzing the Feedback Loop
The feedback loop is crucial for maintaining stable output voltage. Problems in the feedback network, such as incorrect resistor values, faulty feedback capacitors, or layout issues, can lead to unstable output. To troubleshoot:
Check the feedback resistors for the correct values and tolerance.
Inspect feedback capacitors for leakage or damage, as this can degrade the loop's performance.
Verify PCB layout to ensure proper routing of feedback traces and adequate grounding.
1.3 Examining the Load Conditions
A common problem in power management circuits is improper load conditions. The SY8205FCC may work perfectly under low load but fail when subjected to higher currents. To troubleshoot:
Measure the current draw of the load and ensure it does not exceed the IC’s rated output.
Check the load for faults such as short circuits or excessive current requirements.
2. Dealing with SY8205FCC Failures
In cases where troubleshooting does not resolve the issue, it may be necessary to replace the SY8205FCC chip itself. However, before doing so, ensure that the failure is not caused by external components. Consider the following:
Replace damaged passive components like resistors, capacitors, and inductors that might have caused the failure.
Double-check the input voltage to ensure that the chip was not exposed to voltages outside its rated range, which could have caused internal damage.
3. Preventive Maintenance Tips
To prevent future issues with the SY8205FCC, consider implementing the following preventive measures:
Design for thermal management: Ensure that your circuit has adequate heat dissipation and is not prone to overheating.
Select appropriate components: Choose passive components that match the IC’s specifications to prevent overloading or component failure.
Test circuits thoroughly: Before finalizing your design, test the circuit under various conditions to ensure reliable operation.
4. Conclusion
Troubleshooting the SY8205FCC requires a systematic approach, a solid understanding of the chip's functionality, and a good set of tools. By following the steps outlined in this guide, you can effectively diagnose and solve common issues such as unstable voltage, overheating, and poor efficiency. Whether you're a hobbyist or a professional engineer, these troubleshooting techniques will help you get your SY8205FCC-powered system back up and running efficiently.
