The TLP785 optocoupler is a widely used component in electronics for signal isolation and noise reduction. However, like any electronic part, it can face issues over time. This article explores common troubleshooting tips and solutions to ensure the TLP785 functions optimally in your circuits.
TLP785 troubleshooting, optocoupler, TLP785 common issues, electronic component repair, TLP785 problems, signal isolation, optocoupler circuit, TLP785 solutions
Understanding Common Issues with the TLP785 Optocoupler

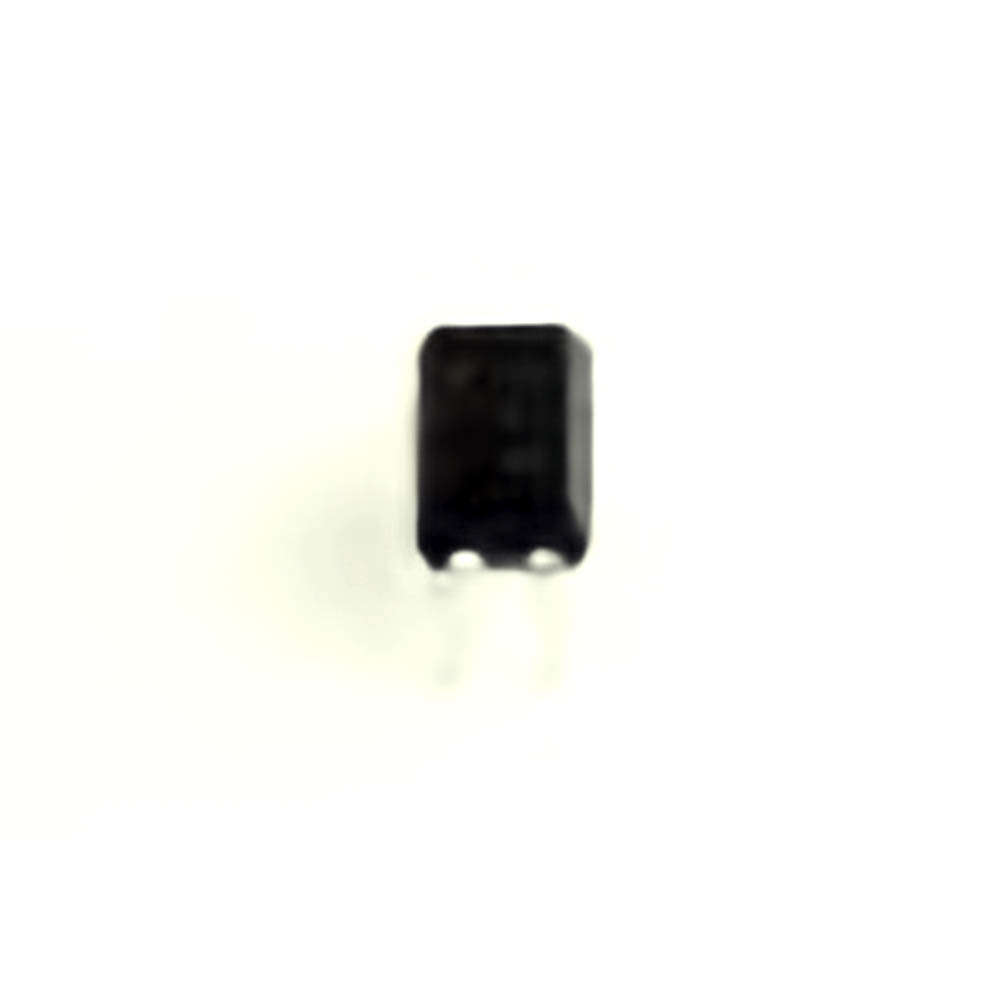

The TLP785 optocoupler is a crucial component in many electronic systems, particularly for isolating signals between different parts of a circuit while preventing high voltage from transferring. Known for its high-speed performance and reliability, the TLP785 is used in various applications, including microcontroller interface s, Power supplies, and data communication systems. Despite its durability and efficiency, users often face troubleshooting challenges with the TLP785.
In this first part of the article, we will explore the most common problems users encounter when working with the TLP785 optocoupler and provide troubleshooting solutions for each issue.
1. Insufficient Isolation Voltage
One of the primary functions of the TLP785 is to provide electrical isolation between its input and output. However, in certain conditions, users may observe that the component does not offer the required isolation voltage, leading to signal interference or even failure of the system.
Possible Causes:
Incorrect Installation: If the TLP785 is instal LED improperly, such as with incorrect polarity or pinout, it may not provide adequate isolation. The input and output must be connected to their respective pins as per the datasheet.
Overvoltage on Input or Output: If the input or output side of the optocoupler exceeds the rated voltage, it may degrade the isolation performance. Overvoltage can break down the internal insulation, causing leakage between the pins.
Component Failure: If the TLP785 has been subjected to stress beyond its specifications (such as excessive current or high temperatures), the internal isolation barrier could be damaged.
Solution:
Ensure that the TLP785 is instal LED correctly, following the manufacturer’s guidelines for pin configuration.
Always double-check the input and output voltage levels to ensure they are within the TLP785's rated specifications.
If isolation is critical, consider using a higher-rated optocoupler for higher voltage applications.
Replace the damaged component if necessary, as the isolation barrier is often not repairable.
2. Inconsistent or No Output Signal
Another frequent issue with the TLP785 is when the output signal is either weak or non-existent. This can be particularly frustrating in high-speed circuits where signal integrity is crucial.
Possible Causes:
Faulty LED Inside the Optocoupler: The LED inside the TLP785 may have failed. This failure can result in no signal being transmitted to the photo transistor on the output side, which is a common problem for optocouplers in general.
Incorrect Drive Current to the LED: The LED inside the optocoupler requires a specific current to operate correctly. If the drive current is too low, the LED may not activate properly, leading to weak or no output. On the other hand, excessive current may damage the LED.
Saturation or Cutoff of the Phototransistor: If the phototransistor on the output side is saturated (i.e., receiving too much light from the LED) or in cutoff (i.e., not receiving enough light), the output signal will be affected.
Solution:
Use an oscilloscope to check if the LED is receiving the correct input signal. If not, adjust the drive current through the LED accordingly.
Verify that the phototransistor is functioning correctly. If it is saturated, reduce the LED current, and if it is in cutoff, increase the LED current.
Check for any damage to the internal components and replace the TLP785 if necessary.
3. Excessive Power Consumption
Power consumption issues can arise when the TLP785 optocoupler draws more current than expected, which can impact the overall performance of the system, especially in low-power designs.
Possible Causes:
Excessive Forward Current to LED: If too much current is passed through the LED, it will consume more power than it should. This can result in overheating and reduced lifespan of the component.
Incorrect Resistor Value: If the current-limiting resistor for the LED is incorrectly sized, it may allow too much current to flow through the LED, causing unnecessary power consumption.
Faulty Internal Components: A damaged or aging optocoupler can draw excessive current due to internal short circuits or degradation of the phototransistor or LED.
Solution:
Check the resistor value for the LED side of the TLP785 and ensure it matches the recommendations in the datasheet. The resistor should limit the current to the correct value to avoid excessive power consumption.
Ensure the input voltage is stable and within the specifications to prevent overdriving the optocoupler.
If the component shows signs of power inefficiency, consider replacing it with a new one to avoid further power drain.
4. Low Switching Speed or Timing Issues
The TLP785 optocoupler is known for its fast switching capabilities, but in some instances, users report slower response times or inconsistent switching behavior. This issue can significantly affect the performance of high-speed digital circuits, such as data transfer systems.
Possible Causes:
Incorrect Drive Circuitry: If the driving circuit does not provide sufficient voltage or current to switch the LED at the correct speed, the optocoupler may not perform as expected.
Capacitive or Inductive Coupling: In circuits with high-frequency signals, capacitive or inductive coupling can introduce delays in the switching behavior, particularly if the optocoupler is improperly shielded or placed too close to high-frequency sources.
Insufficient Drive Voltage: The LED inside the TLP785 may not be receiving enough voltage to switch the phototransistor quickly, causing delays or inconsistent switching.
Solution:
Ensure that the drive circuit for the TLP785 provides the appropriate voltage and current to the LED, in line with the specifications for fast switching.
Use proper shielding or layout techniques to minimize the effects of capacitive or inductive coupling on the circuit’s switching behavior.
Test the switching behavior using an oscilloscope and adjust the input signal if necessary to achieve the desired timing.
Advanced Troubleshooting and Solutions for the TLP785 Optocoupler
In the second part of this article, we will focus on more advanced troubleshooting techniques, including how to identify and fix issues related to environmental factors, aging, and circuit design.
